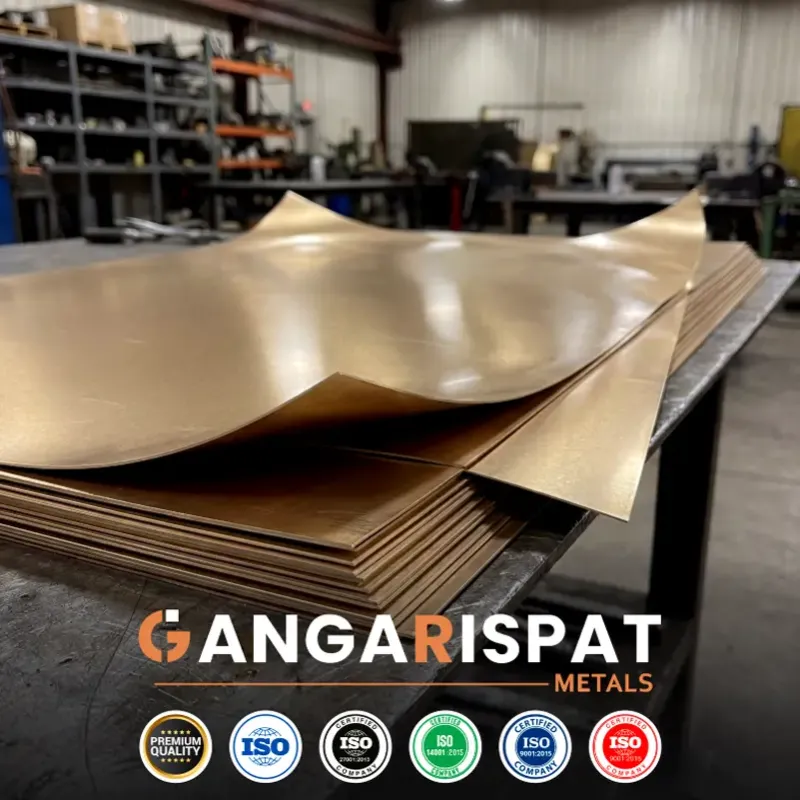

Gun Metal Sheets are superior bronze alloy products manufactured using predominantly copper, tin and zinc, giving them a perfect combination of strength, endurance and resistance to corrosion. Gun metal sheets are known to have high wear resistance and good machinability, which makes them highly applicable in engineering, marine and industrial sectors. They can operate in very difficult conditions such as seawater, steam and chemicals leading them to be extremely useful in the form of valves, pump components, bearings, gears, bushings and decorative hardware.
Gun metal has a good load-carrying capacity and dimensional stability, which guarantees a long service life and a constant performance. The use of these sheets is due to the finish of the surface, corrosion resistance, and the capacity to endure moderate mechanical stress. Gun metal sheets come in different thicknesses and sizes in accordance with industry standards that can be precision machined and custom fabricated. They are used in preference in situations that require strength, resistance to corrosion and reliability.
Ganga R Ispat Metals is an organisation with a strong history and good reputation among the Gunmetal Sheets Manufacturers in India and with a long tradition of supplying high-quality and long-lasting gunmetal materials to its domestic as well as international markets. The company has, over the years, gained a good reputation in terms of quality, construction and manufacturing that is customer-orientated. We gained much experience in the field with 7+ years of experience in the market and thus have gained hands-on experience in the actual production settings and have developed a comprehensive understanding of the needs of the industrial materials.
Ganga R Ispat Metals currently engages in manufacturing, supplying, dealing and exporting high-performance Gunmetal Sheets that are of high quality and ISO certified 9001:2015 and meet the recognised global quality standards. Close monitoring is given to each stage of manufacturing to guarantee correct composition of every alloy, controlled thickness and consistent surface finish. Such little technicalities would appear insignificant on paper, but in actual industry application, they determine the ease of the material in operation.
The company has a strong operational presence in Gujarat and serves its customers in India as well as globally. Gunmetal Sheets in India are extensively deployed in engineering, mechanical, marine, valve, pump and industrial equipment applications where they are needed in terms of strength, corrosion resistance and long service life. We produce Gunmetal Sheets that are in correspondence with such practical requirements, and not only with the theoretical ones.
During the manufacturing stage, we focus on:
Ganga R Ispat Metals is also known as one of the reliable Gunmetal Sheets Suppliers in India, which serves wholesalers, OEMs and industrial buyers. We are experienced in the industry, and we realise that delays in materials delivery or erratic quality can have a direct impact on the production schedule.
We managed to maintain a well-regulated supply chain and stock ready to supply small and bulk orders to avoid such problems. As we are ISO certified, all provided batches are of the same quality parameter, which means that the customer will get the same material with the same quality each time.
We are also well-known Gunmetal Sheets Dealers in India, which means the distribution of materials in various regions is easy and quick. The dealer network serves the needs of small, medium or large-scale requirements with appropriate documentation and open pricing.
Ganga R Ispat Metals is one of the most popular Gunmetal Sheets Exporters in India; we provide quality products to the international markets like China, America, Europe, the Middle East and also Southeast Asia. The company has 7+ years of experience in exports, so it is evident that it knows what is expected of it internationally in terms of quality and what is required in terms of logistics.
All the export operations are controlled by systems which have been certified by ISO 9001:2015, which means that all the activities are properly inspected, packed and documented prior to dispatch. Exportation of the Gunmetal Sheets is done in detail since transportation of the products across a long distance involves good packing and coordination.
The unique aspect of Ganga R Ispat Metals is that it is a one-roof company that brings together manufacturing prowess, supply stability and pragmatic knowledge in the industry. Having the experience of over 7 years of practice and being certified according to ISO 9001:2015, the company does not seek to achieve a short-term benefit but insists on long-term performance.
Ganga R Ispat Metals is of the opinion that good industries are made out of quality materials. All the Gunmetal Sheets distributed depict experience, discipline and responsibility. When the quality is not compromised, and the communication is not distorted, long-term relationships develop automatically, and it is the core upon which we are still driving.
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| LG2 | 200 – 250 | 90 – 120 | 15 – 20 | 65 – 85 |
| G1 (G1-C) | 240 – 300 | 120 – 160 | 12 – 18 | 80 – 100 |
| G2 (G2-C) | 220 – 280 | 110 – 150 | 12 – 16 | 75 – 95 |
| G3 (G3-C) | 260 – 320 | 130 – 170 | 10 – 15 | 85 – 105 |
| RG5 | 200 – 260 | 100 – 130 | 15 – 20 | 70 – 90 |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| LTB1 | 200 – 260 | 100 – 130 | 15 – 20 | 70 – 90 |
| LTB2 | 230 – 290 | 110 – 150 | 12 – 18 | 75 – 95 |
| LTB3 | 250 – 320 | 130 – 170 | 10 – 15 | 85 – 105 |
| UNS No. | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| C83600 | 210 – 260 | 105 – 140 | 15 – 20 | 65 – 85 |
| C93200 | 240 – 310 | 120 – 170 | 10 – 15 | 80 – 100 |
| C90500 | 270 – 350 | 150 – 200 | 8 – 12 | 90 – 120 |
| C90300 | 260 – 330 | 140 – 190 | 8 – 12 | 85 – 110 |
| Property | Typical Value |
|---|---|
| Density | 8.7 – 8.9 g/cm³ |
| Melting Point | 900 – 1020 °C |
| Modulus of Elasticity | 95 – 110 GPa |
| Thermal Conductivity | 45 – 65 W/m·K |
| Electrical Conductivity | 7 – 15 % IACS |
| Specific Heat Capacity | 0.38 kJ/kg·K |
| Coefficient of Thermal Expansion | 16 – 18 ×10⁻⁶ /°C |
| Property | Typical Value |
|---|---|
| Density | 8.7 – 8.9 g/cm³ |
| Melting Range | 900 – 1000 °C |
| Modulus of Elasticity | 100 – 110 GPa |
| Thermal Conductivity | 50 – 60 W/m·K |
| Electrical Conductivity | 8 – 14 % IACS |
| Specific Heat | 0.37 – 0.39 kJ/kg·K |
| Thermal Expansion | 16 – 18 ×10⁻⁶ /°C |
| Property | Typical Value |
|---|---|
| Density | 8.8 – 8.9 g/cm³ |
| Melting Range | 900 – 1040 °C |
| Modulus of Elasticity | 100 – 115 GPa |
| Thermal Conductivity | 45 – 70 W/m·K |
| Electrical Conductivity | 7 – 16 % IACS |
| Specific Heat | 0.38 kJ/kg·K |
| Thermal Expansion | 16 – 18 ×10⁻⁶ /°C |
| Property | Typical Value | Notes |
|---|---|---|
| Thermal Conductivity | 45 – 65 W/m·K | Good heat dissipation capability |
| Melting Temperature | 900 – 1020 °C | Depends on alloy composition |
| Casting / Pouring Temperature | 1050 – 1150 °C | Suitable for foundry applications |
| Specific Heat Capacity | 0.38 kJ/kg·K | Moderate heat absorption |
| Coefficient of Thermal Expansion | 16 – 18 × 10⁻⁶ /°C | Dimensional change under temperature variation |
| Thermal Diffusivity | 1.4 – 1.8 × 10⁻⁵ m²/s | Rate of heat transfer through material |
| Recommended Working Temperature | Up to 250 °C | Continuous service limit |
| Oxidation Resistance | Good | Stable in steam and moist environments |
| Property | Typical Value | Notes |
|---|---|---|
| Thermal Conductivity | 50 – 60 W/m·K | Efficient heat transfer |
| Melting Range | 900 – 1000 °C | Composition dependent |
| Casting Temperature | 1050 – 1120 °C | Controlled cooling required |
| Specific Heat | 0.37 – 0.39 kJ/kg·K | Heat storage capacity |
| Thermal Expansion | 16 – 18 × 10⁻⁶ /°C | Stable under moderate heat exposure |
| Maximum Service Temperature | 200 – 250 °C | Suitable for steam line applications |
| Thermal Shock Resistance | Moderate | Sudden temperature changes should be avoided |
| Property | Typical Value | Notes |
|---|---|---|
| Thermal Conductivity | 45 – 70 W/m·K | Varies according to UNS grade |
| Melting Range | 900 – 1040 °C | Higher tin content slightly increases range |
| Pouring Temperature | 1050 – 1150 °C | Used in casting applications |
| Specific Heat | 0.38 kJ/kg·K | Moderate heat retention |
| Thermal Expansion | 16 – 18 × 10⁻⁶ /°C | Predictable dimensional stability |
| Continuous Service Temperature | Up to 260 °C | Suitable for industrial applications |
| Thermal Fatigue Resistance | Good | Performs well under cyclic heating conditions |
| Grade / Designation | Standard Code |
|---|---|
| LG2 | BS 1400 LG2 |
| G1 / Grade I | BS 1400 G1-C |
| G2 / Grade II | BS 1400 G2-C |
| G3 / Grade III | BS 1400 G3-C |
| RG5 | BS 1400 RG5 |
| Grade / Designation | Standard Code |
|---|---|
| LTB1 | IS 318 LTB1 |
| LTB2 | IS 318 LTB2 |
| LTB3 | IS 318 LTB3 |
| Grade / UNS No. | Standard Specification |
|---|---|
| C83600 | ASTM B505 / B271 |
| C93200 | ASTM B505 |
| C90500 | ASTM B505 |
| C90300 | ASTM B505 |
| Type | Thickness Range |
|---|---|
| Thin Sheets | 1 mm – 5 mm |
| Medium Thickness Sheets | 6 mm – 25 mm |
| Heavy Thickness Plates | 26 mm – 100 mm |
| Custom Thickness | Up to 150 mm (on request) |
| Standard Size (mm) | Standard Size (Feet) |
|---|---|
| 1000 × 2000 | 3.3 ft × 6.6 ft |
| 1220 × 2440 | 4 ft × 8 ft |
| 1250 × 2500 | 4 ft × 8.2 ft |
| 1500 × 3000 | 5 ft × 10 ft |
| 2000 × 4000 | 6.6 ft × 13 ft |
| Parameter | Range |
|---|---|
| Width | 500 mm – 2000 mm |
| Length | 1000 mm – 4000 mm |
| Custom Cut Size | As per drawing or requirement |
| Parameter | Tolerance |
|---|---|
| Thickness Tolerance | ±0.2 mm to ±1.5 mm (depending on thickness) |
| Width / Length Tolerance | ±2 mm to ±5 mm |
| Grade | Cu (%) | Sn (%) | Zn (%) | Pb (%) | Ni (%) |
|---|---|---|---|---|---|
| LG2 | 85 – 88 | 4 – 6 | 4 – 6 | 4 – 6 | ≤ 1.0 |
| G1 (G1-C) | 86 – 89 | 9 – 11 | 1 – 3 | ≤ 1.0 | ≤ 1.0 |
| G2 (G2-C) | 85 – 88 | 7 – 9 | 3 – 5 | ≤ 1.5 | ≤ 1.0 |
| G3 (G3-C) | 84 – 87 | 6 – 8 | 4 – 6 | ≤ 2.0 | ≤ 1.0 |
| RG5 | 84 – 86 | 4 – 6 | 4 – 6 | 4 – 6 | ≤ 1.0 |
| Grade | Cu (%) | Sn (%) | Zn (%) | Pb (%) | Ni (%) |
|---|---|---|---|---|---|
| LTB1 | 85 – 88 | 4 – 6 | 4 – 6 | 4 – 6 | ≤ 1.0 |
| LTB2 | 86 – 89 | 6 – 8 | 2 – 4 | ≤ 2.0 | ≤ 1.0 |
| LTB3 | 88 – 90 | 8 – 10 | 1 – 3 | ≤ 1.0 | ≤ 1.0 |
| UNS No. | Cu (%) | Sn (%) | Zn (%) | Pb (%) | Fe (%) |
|---|---|---|---|---|---|
| C83600 | 84 – 86 | 4 – 6 | 4 – 6 | 4 – 6 | ≤ 0.25 |
| C93200 | 82 – 84 | 6.3 – 7.5 | 3 – 4 | 6.3 – 7.5 | ≤ 0.20 |
| C90500 | 86 – 89 | 10 – 12 | ≤ 1.0 | ≤ 0.5 | ≤ 0.15 |
| C90300 | 87 – 90 | 8 – 10 | ≤ 1.0 | ≤ 1.0 | ≤ 0.10 |
| Step No. | Process Stage | Description | Purpose |
|---|---|---|---|
| 1 | Raw Material Selection | High-purity Copper, Tin, Zinc, and Lead are selected | To ensure accurate chemical composition |
| 2 | Melting | Melting carried out in an induction or crucible furnace at 1000–1150°C | To achieve uniform alloy formation |
| 3 | Alloying | Required percentage of alloying elements is added | To meet the specified standard grade |
| 4 | Slag Removal & Degassing | Impurities and gases are removed from molten metal | To obtain a clean and defect-free structure |
| 5 | Casting | Molten metal is poured into molds | To form slabs or billets |
| 6 | Cooling & Solidification | Controlled cooling process is applied | To reduce internal stresses |
| 7 | Homogenizing (If Required) | Heat treatment performed for structural uniformity | To refine grain structure |
| 8 | Hot Rolling | Cast slabs are rolled to the required thickness | Thickness reduction |
| 9 | Cold Rolling (If Required) | Further rolling to improve surface finish and dimensions | To achieve dimensional accuracy |
| 10 | Annealing | Heat treatment at 450–650°C | To relieve stress and improve machinability |
| 11 | Surface Finishing | Grinding, polishing, or machining operations | To obtain smooth surface finish |
| 12 | Inspection & Testing | Chemical and mechanical testing performed | Quality assurance |
| 13 | Cutting to Size | CNC or saw cutting as per requirement | To meet customer-specified dimensions |
| 14 | Marking & Packing | Heat number and grade marking done before packing | To ensure traceability and safe dispatch |
| Finish Type | Parameter | Details |
|---|---|---|
| Mill Finish | Process | As-rolled surface after manufacturing |
| Surface Texture | Slightly rough / matte | |
| Application | General industrial use | |
| Advantage | Economical option | |
| Ground Finish | Process | Surface smoothened using abrasive grinding |
| Surface Roughness | Ra 1.6 – 3.2 µm | |
| Application | Precision components | |
| Benefit | Improved flatness and dimensional accuracy | |
| Polished Finish | Process | Mechanical polishing and buffing |
| Surface Roughness | Ra 0.4 – 1.2 µm | |
| Appearance | Smooth and semi-gloss | |
| Application | Decorative and visible parts | |
| Mirror Finish | Process | Multi-stage fine polishing |
| Surface Roughness | Ra ≤ 0.2 µm | |
| Appearance | Highly reflective | |
| Application | Architectural and premium applications | |
| Brushed / Satin Finish | Process | Linear abrasive finishing |
| Texture | Fine parallel lines | |
| Application | Decorative panels and fittings | |
| Advantage | Hides minor surface scratches | |
| Machined Finish | Process | CNC machining (milling/turning) |
| Tolerance | High precision achievable | |
| Application | Engineering and custom components | |
| Pickled / Cleaned Surface | Process | Mild chemical cleaning |
| Purpose | Removal of oxide layers and surface impurities | |
| Application | Pre-coating or plating preparation | |
| Protective Coating (Optional) | Clear Lacquer Coating | Prevents tarnishing |
| Light Oil Coating | Temporary corrosion protection | |
| VCI Wrapping | Export moisture protection |
| Finish Type | Typical Roughness (Ra µm) |
|---|---|
| Mill Finish | 3.2 – 6.3 |
| Ground | 1.6 – 3.2 |
| Polished | 0.4 – 1.2 |
| Mirror | ≤ 0.2 |
| Industry | Application | Purpose |
|---|---|---|
| Marine Industry | Pump components | Corrosion resistance in seawater |
| Valve bodies & seats | Pressure tight sealing | |
| Marine bushings | Anti-friction properties | |
| Propeller components | Strength + corrosion resistance | |
| Sea water fittings | Long service life | |
| Oil & Gas Industry | Valve parts | Pressure handling capability |
| Bearing plates | Wear resistance | |
| Pump liners | Friction resistance | |
| Flange plates | Leak-proof joints | |
| Power Generation Industry | Turbine components | Heat resistance |
| Steam valve plates | Thermal stability | |
| Condenser fittings | Corrosion resistance | |
| Automotive Industry | Thrust washers | Anti-wear performance |
| Bearing plates | Load carrying capacity | |
| Gear blanks | Good machinability | |
| Heavy Engineering & Machinery | Slide plates | Wear resistance |
| Machine bed plates | Dimensional stability | |
| Industrial bushes | Long operational life | |
| Electrical & Non-Sparking Applications | Switchgear parts | Non-magnetic property |
| Spark-resistant tools | Safety in hazardous areas | |
| Terminal plates | Moderate conductivity (7–16% IACS) | |
| Construction & Infrastructure | Decorative plates | Aesthetic finish |
| Architectural fittings | Corrosion resistance | |
| Heavy-duty washers | Strength & durability | |
| Chemical & Process Industry | Acid-resistant fittings | Corrosion resistance |
| Pump plates | Chemical stability | |
| Tank components | Leak resistance |
Packaging is a major part of every delivery, and we understand it very well. We supply many types of metals and other industrial metal products to make sure they reach our customers safely. We know products face many types of problems, such as vibration, moisture and rough handling therefore we follow a careful and organised packaging process. Our goal is simple: we deliver every product in the same strong and perfect condition as when it leaves our facility.
We check every order before packing it. The size, straightness, surface quality, grade, and quantity of each rod and bar are checked. We ensure that the material is correct as per the customer request. Once inspected, we sort the products by their size and grade of material. This will ensure that we maintain the order in everything and prevent errors in dispatch. Bundling and loading are also simpler and quicker.
After these steps, make sure to arrange the products in proper alignment so that they are straight and balanced. Then they are strapped down with industrial grade strapping. These straps keep the bundle secure during lifting and transportation. We include additional support to shorten bending or movement in longer rods. We also ensure that the straps do not tear the edges or the surface of the material. This cautious wrapping ensures the merchandise is secure throughout the delivery and transportation.
Sometimes metal can be damaged by moisture and changing weather conditions. We apply protective methods based on the shipment type and destination. We may use anti-rust coatings, moisture-resistant wrapping, or protective covers to prevent them. Our additional cover against humidity and corrosion is given to export shipments and coastal deliveries. These will assist us to retain the shine, surface finish and integrity of our metal products in the long-distance transportation.
In case of large orders and/or shipments to the export market, we offer extra protection. We pack them on heavy pallets or stuff them into tough wooden structures that can be transported all over the world. The packaging is dependent on the size and weight of the shipment. We ensure that the packing is able to withstand packing pressure and movement of containers. This strong outer coating secures the materials throughout their long trips, port services and storage in warehousing.
We have proper lifting equipment such as forklifts and cranes to load materials. Our team places the bundles carefully inside trucks or containers. We place them in such a manner that they do not roll or shift during the transportation. We balance the weight to minimise the weight on any section of the shipment. Our safe loading methods give us the chance to reduce the chances of being damaged in transit, whether it is along the road or the sea.
Ganga R Ispat Metals distributes its products in India and also in overseas markets. We provide transportation with trusted logistics vendors. In the case of domestic deliveries, we organise road transportation. In export orders, we meet the international shipping standards and container loading requirements. Each shipment will be planned based on the delivery schedules to make it arrive on time. Our well organized transport system assists us in delivering products in an efficient and safe way.
We make ready all papers preceding dispatch. These documents can be invoices, packing lists, and required certificates. Proper documentation assists in easy transportation and reduced time in clearance of customs when making export shipments. We have good records to promote transparency and professional service.
A well-structured packaging and transportation process directly impacts product performance upon delivery. Our approach ensures:
We believe that packaging is not just about wrapping materials — it is about protecting the value and reliability of the product until it reaches the client.
In Ganga R Ispat Metals, we suppose that safe packaging and transportation ensure the value of our products. To avoid bending, scratches, and corrosion, we make every effort to avoid transit damage. We consider packaging as our quality responsibility. We have a standard process; however, our packing techniques are changed according to the product size, order quantity, and destination.
We ensure that all the rods and bars are sold to our customers in a powerful, secure and working condition. We offer secure packaging or assured transportation as an additional service.
Yes, gunmetal sheets provide great resistance to corrosion particularly in water and steam, as well as in marine conditions. This renders them applicable in applications that are subjected to moisture, chemicals and severe operating environments.
In marine fittings, marine valves, marine bearings, pump parts, bushes, gears and industrial parts, it is commonly applied in gunmetal sheets to provide resistance to corrosion, pressure, and wear necessary to ensure long-lasting performance.
Gunmetal sheets are made of alloy sheets of copper, which are mainly made of copper, tin, and zinc, with traces of lead. They are characterised by high levels of strength and resistance to corrosion in harsh industrial conditions.
Yes, the gunmetal sheets may be delivered in accordance with the international standards of IS, ASTM, BS, or DIN, and also to customer-oriented drawings and technical specifications.
There is a variety of standard sheet thicknesses and sheet sizes in gunmetal. Specific customer or project requirements can also be fulfilled, whether it is a custom thickness or a cut-to-size sheet.
Yes, our gunmetal sheets are produced to the export standard and those are packaged in protective and moisture-resistant materials to make sure that they are transported safely abroad.
