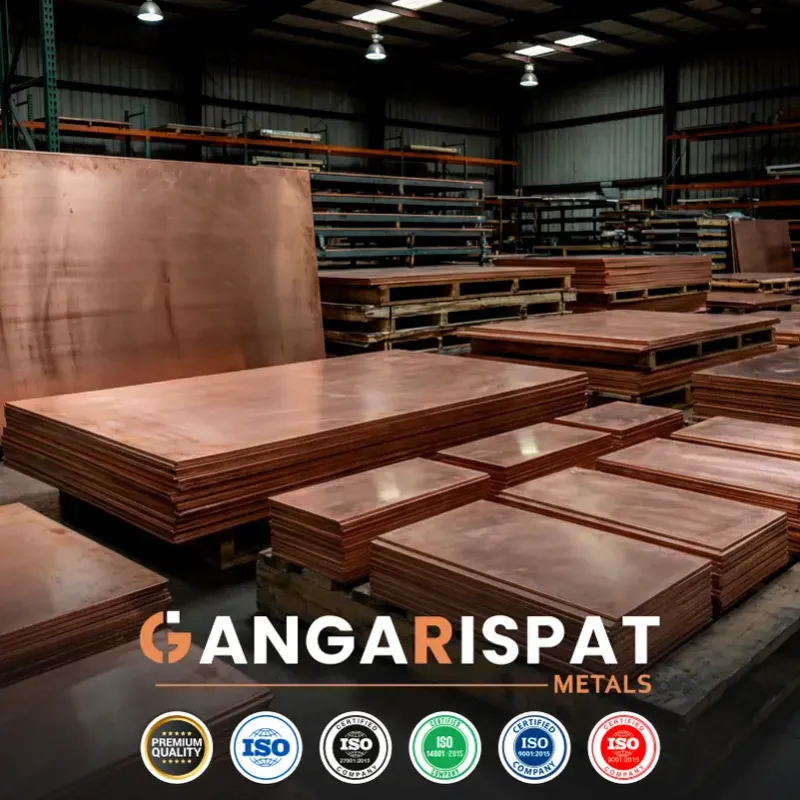

Copper Sheets are metal sheets made of high-quality copper or copper alloys that are thin, flat, and have a combination of great electrical and thermal conductivity, corrosion resistance and durability. They are produced by rolling refined copper into accurate thicknesses and cutting it to both standard and custom sizes, which makes it suitable for a broad variety of industrial, electrical, architectural and decorative purposes. The copper sheets are soft, ductile and easy to cut, bend, shape, solder or weld without cracking. They are natural antimicrobials that are therefore appropriate in hygienic surfaces within a kitchen or healthcare environment.
Applications include busbars, connectors, grounding strips, heat exchangers, radiators, roofing, cladding and artistic or craftwork. These sheets are offered in several grades, including high-purity, Electrolytic Tough Pitch (ETP) and alloyed copper, and can be used to fit various performance and structural needs. Copper sheets are invaluable in electrical, industrial, construction and artistic industries due to their versatility, reliability, and attractiveness, which offer practical and aesthetic remedies.
Ganga R Ispat Metals is a reputable company among Copper Sheets Manufacturers in India. Our company is producing copper sheets that are used in industrial work every day. We have several years of experience in the market and have understood that copper not only matters in terms of purity but also in how the sheet can be cut, bent or fixed into a system.
At Ganga R Ispat Metals, the sheets are made out of copper with extreme care. Our production process is strictly controlled and supported by the ISO 9001:2015 certification that allows us to be constantly on the same level of quality in each batch. Even minor inspections, such as thickness balance and surface smoothness, have to be taken into account with copper sheets in electrical or mechanical work.
During manufacturing, we concentrate on:
Copper Nickel Sheets are renowned in the sense that they are very resistant to corrosion, particularly in the sea and coastal settings. These sheets are good in strength, thermal stability and service life, thus being suitable in heat exchangers, condensers, shipbuilding and offshore.
Beryllium Copper Sheets are lightweight and strong, and possess good electrical and thermal conductivity. They find extensive application in precision parts, electrical connectors, springs and tooling applications where durability, fatigue resistance and dimensional stability are important.
Tellurium Copper Sheets are specially alloyed in order to give them better machinability and still maintain their good electrical conductivity. They are typically employed in electrical parts, welding electrodes, and components that require a lot of machining to be done and have constant performance.
Ganga R Ispat Metals is also known as a reliable Copper Sheets Suppliers in India, which helps the industries that require a constant supply of materials in time. Having 7+ years of experience in supply, we know how delayed or irregular quality may slow down day-to-day operations.
We have a structured and easy supply process which helps to deliver promptly in all metro cities of India, like Delhi, Noida, Bangalore and Mumbai. As an ISO-certified company, we use appropriate storage, handling and dispatching techniques to ensure that copper sheets are delivered to customers in good condition. It has the advantage of maintaining a ready stock of the most popular sizes, which saves waiting time.
Ganga R Ispat Metals, being experienced Copper Sheets Dealers in India, we assist the customer to select the appropriate material without confusion. Having 7+ years of industry exposure, we understand that not all people can use technical lingo, so we make everything simple and concise.
The dealer business will operate on an ISO 9001:2015 certified system, which will be transparent in pricing, material handling and the documentation. The customers tend to have questions such as 'What is the right thickness?' or 'Will this be useful for my use?' We respond to these honestly, out of experience.
Ganga R Ispat Metals is a fast-developing company that is beginning to establish itself as a stable Copper Sheets Exporters in India, providing copper sheets to foreign markets. Having experience of over 7+ years in the export business in countries such as China, America, the Middle East and Europe, we realise that the international customers demand uniformity, adequate packaging and delivery.
We are an ISO-certified exporter, which means every shipment of exports has a quality check-up prior to delivery. The process of exporting copper sheets is done with caution since transportation over a long distance requires good packing and proper documentation.
Ganga R Ispat Metals is an experienced wholesaler of Copper Sheets in India; hence, it is well aware of the application of copper sheets in actual work environments. Having an experience of several years in the market, we have been supplying copper sheets in several industries where reliability is a big factor.
Copper sheets are used due to the fact that they are a good conductor of electricity, do not easily corrode, and they are easy to handle. They are mostly selected in cases where performance and safety are important.
The copper sheets at Ganga R Ispat Metals are fabricated through true experience and sincere work. We are committed to consistent quality, open communication and long-term relationships. With materials doing well day in day out, confidence builds automatically, and such confidence keeps the industries on their track towards success.
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| C10100 (OFE) | 210 | 70 | 40 | 45 |
| C10200 (OF) | 220 | 75 | 38 | 50 |
| C11000 (ETP) | 220 | 75 | 35 | 50 |
| C12200 (DHP) | 230 | 80 | 30 | 55 |
| C18150 (Cr-Cu) | 380–450 | 250–350 | 15–20 | 100–130 |
| C22000 | 300 | 100 | 35 | 80 |
| C26000 | 315 | 110 | 30 | 85 |
| C36000 | 350 | 150 | 20 | 90 |
| C71500 (70/30 Cu-Ni) | 360 | 125 | 30 | 100 |
| C14500 (Te Copper) | 240 | 100 | 20 | 65 |
| C14700 (Sulfur Copper) | 230 | 95 | 22 | 60 |
| Grade | Density (g/cm³) | Melting Point (°C) | Thermal Conductivity (W/m·K) | Electrical Conductivity (% IACS) | Coefficient of Thermal Expansion (µm/m·°C) | Modulus of Elasticity (GPa) |
|---|---|---|---|---|---|---|
| C10100 (OFE) | 8.94 | 1083 | 390 | 101 | 16.5 | 110 |
| C10200 (OF) | 8.94 | 1083 | 385 | 100 | 16.5 | 110 |
| C11000 (ETP) | 8.96 | 1083 | 385 | 100–101 | 16.8 | 110 |
| C12200 (DHP) | 8.94 | 1083 | 330 | 85 | 17 | 110 |
| C18150 (Cr-Cu) | 8.89 | 1070 | 320 | 80 | 17 | 125 |
| C22000 | 8.9 | 1040 | 150 | 28 | 20 | 105 |
| C26000 | 8.53 | 930 | 120 | 28 | 20.5 | 100 |
| C36000 | 8.49 | 900 | 115 | 26 | 20.5 | 97 |
| C71500 (70/30 Cu-Ni) | 8.94 | 1170 | 50 | 5 | 16.5 | 150 |
| C14500 (Te Copper) | 8.93 | 1080 | 350 | 93 | 16.9 | 115 |
| C14700 (Sulfur Copper) | 8.92 | 1080 | 340 | 90 | 16.8 | 110 |
| Grade | Thermal Conductivity (W/m·K) | Melting Point (°C) | Specific Heat (J/kg·K) | Coefficient of Thermal Expansion (µm/m·°C) | Thermal Diffusivity (mm²/s) |
|---|---|---|---|---|---|
| C10100 (OFE) | 390 | 1083 | 385 | 16.5 | 111 |
| C10200 (OF) | 385 | 1083 | 385 | 16.5 | 110 |
| C11000 (ETP) | 385 | 1083 | 385 | 16.8 | 110 |
| C12200 (DHP) | 330 | 1083 | 385 | 17 | 95 |
| C18150 (Cr-Cu) | 320 | 1070 | 380 | 17 | 90 |
| C22000 | 150 | 1040 | 380 | 20 | 45 |
| C26000 | 120 | 930 | 380 | 20.5 | 40 |
| C36000 | 115 | 900 | 380 | 20.5 | 38 |
| C71500 (70/30 Cu-Ni) | 50 | 1170 | 380 | 16.5 | 14 |
| C14500 (Te Copper) | 350 | 1080 | 385 | 16.9 | 100 |
| C14700 (Sulfur Copper) | 340 | 1080 | 385 | 16.8 | 98 |
| Sr. No. | Grade / Designation | UNS Number | Material Type | Category |
|---|---|---|---|---|
| 1 | C101 (OFE) | C10100 | Oxygen Free Electronic Copper | Pure Copper |
| 2 | C102 (OF) | C10200 | Oxygen Free Copper | Pure Copper |
| 3 | C110 (ETP) | C11000 | Electrolytic Tough Pitch Copper | Pure Copper |
| 4 | C122 (DHP) | C12200 | Phosphorus Deoxidized Copper | Pure Copper |
| 5 | C18150 | C18150 | Chromium Copper | Copper Alloy |
| 6 | C220 (Commercial Bronze) | C22000 | 90/10 Brass (Copper-Zinc Alloy) | Brass Alloy |
| 7 | C260 (Cartridge Brass) | C26000 | 70/30 Brass | Brass Alloy |
| 8 | C360 (Free-Machining Brass) | C36000 | Leaded Brass | Brass Alloy |
| 9 | C715 (70/30 Cu-Ni) | C71500 | Copper Nickel Alloy | Copper Nickel Alloy |
| 10 | Free Machining Copper | C14500 | Tellurium Copper | Free Machining Copper |
| 11 | Free Machining Copper | C14700 | Sulfur Copper | Free Machining Copper |
| Product Type | Thickness Range (mm) | Width Range (mm) | Length Range (mm) | Supply Condition |
|---|---|---|---|---|
| Thin Sheets | 0.2 to 1.5 | 300 to 1250 | 600 to 3000 | Annealed / Half Hard |
| Medium Sheets | 1.6 to 6 | 300 to 1500 | 1000 to 3000 | Hot Rolled / Cold Rolled |
| Thick Sheets | 6.1 to 25 | 300 to 1500 | 1000 to 6000 | Hot Rolled |
| Extra Thick Plates | 26 to 100 | 500 to 2000 | 1000 to 6000 | As Rolled / Machined |
| Precision Cut Sheets | 0.5 to 10 | As per requirement | As per requirement | Sheared / Laser Cut |
| Coil Form | 0.2 to 6 | 300 to 1250 | Continuous | Soft / Half Hard |
| Thickness (mm) | Weight Per Sheet (kg) |
|---|---|
| 0.5 | 8.9 |
| 1 | 17.8 |
| 1.5 | 26.7 |
| 2 | 35.6 |
| 3 | 53.4 |
| 4 | 71.2 |
| 5 | 89 |
| 6 | 106.8 |
| 8 | 142.4 |
| 10 | 178 |
| Thickness (mm) | Weight Per Sheet (kg) |
|---|---|
| 0.5 | 13.25 |
| 1 | 26.5 |
| 1.5 | 39.75 |
| 2 | 53 |
| 3 | 79.5 |
| 4 | 106 |
| 5 | 132.5 |
| 6 | 159 |
| 8 | 212 |
| 10 | 265 |
| Thickness (mm) | Weight (kg/m²) |
|---|---|
| 0.5 | 4.45 |
| 1 | 8.9 |
| 2 | 17.8 |
| 3 | 26.7 |
| 5 | 44.5 |
| 10 | 89 |
| Grade | Cu (%) | Zn (%) | Ni (%) | Cr (%) | Pb (%) | P (%) | Te (%) | S (%) | Fe (%) |
|---|---|---|---|---|---|---|---|---|---|
| C10100 (OFE) | 99.99 | 0.005 | 0.005 | 0.005 | 0.005 | 0.002 | 0.001 | 0.001 | 0.005 |
| C10200 (OF) | 99.95 | 0.01 | 0.01 | 0.01 | 0.01 | 0.003 | 0.001 | 0.001 | 0.01 |
| C11000 (ETP) | 99.9 | 0.02 | 0.02 | 0.01 | 0.02 | 0.005 | 0.002 | 0.002 | 0.02 |
| C12200 (DHP) | 99.9 | 0.02 | 0.02 | 0.01 | 0.02 | 0.015–0.040 | 0.002 | 0.002 | 0.02 |
| C18150 | 98.8–99.5 | 0.05 | 0.05 | 0.5–1.2 | 0.01 | 0.01 | 0.005 | 0.005 | 0.1 |
| C22000 | 90 | 10 | 0.1 | 0.05 | 0.05 | 0.01 | 0.005 | 0.005 | 0.05 |
| C26000 | 70 | 30 | 0.2 | 0.05 | 0.05 | 0.01 | 0.005 | 0.005 | 0.05 |
| C36000 | 61.5 | 35.5 | 0.3 | 0.05 | 3 | 0.01 | 0.005 | 0.005 | 0.3 |
| C71500 | 70 | 0.2 | 30 | 0.05 | 0.02 | 0.01 | 0.005 | 0.005 | 0.7 |
| C14500 | 99.2 | 0.01 | 0.01 | 0.01 | 0.01 | 0.005 | 0.5 | 0.002 | 0.01 |
| C14700 | 99.3 | 0.01 | 0.01 | 0.01 | 0.01 | 0.005 | 0.002 | 0.4 | 0.01 |
| Step No. | Process Stage | Description | Key Parameters |
|---|---|---|---|
| 1 | Raw Material Selection | High-purity copper cathodes or alloying elements selected as per grade | 99.9%+ purity for pure copper |
| 2 | Melting | Copper melted in induction or reverberatory furnace | ~1083°C melting point |
| 3 | Alloying | Addition of Zn, Ni, Cr, Pb, Te etc. (for alloy grades) | Controlled composition |
| 4 | Refining & Degassing | Removal of impurities and gas control | Oxygen/phosphorus control |
| 5 | Casting | Molten metal cast into slabs or billets | Continuous or semi-continuous casting |
| 6 | Hot Rolling | Slabs heated and rolled to reduce thickness | 750–950°C |
| 7 | Scalping | Surface milling to remove oxide layers | Improves surface quality |
| 8 | Cold Rolling | Further thickness reduction to sheet size | Improves strength & finish |
| 9 | Intermediate Annealing | Heat treatment between rolling stages | 400–650°C |
| 10 | Final Annealing | Achieves required temper (O, Half Hard, Full Hard) | Controlled furnace heating |
| 11 | Pickling & Cleaning | Acid cleaning to remove scale | Uniform surface finish |
| 12 | Leveling & Straightening | Ensures flatness and dimensional accuracy | Precision rollers |
| 13 | Cutting to Size | Sheets cut as per customer requirements | Shearing / Laser / CNC |
| 14 | Surface Finishing | Brushed, polished, coated, or mill finish | As per application |
| 15 | Inspection & Testing | Chemical, mechanical, dimensional checks | ASTM / EN / IS standards |
| 16 | Packing & Dispatch | Protective wrapping and pallet packing | Export compliant packing |
| Sr. No. | Finish Type | Process Description | Surface Appearance | Typical Application |
|---|---|---|---|---|
| 1 | Mill Finish | As rolled surface without additional treatment | Natural metallic, light rolling marks | Industrial use |
| 2 | Bright Annealed Finish | Annealed in controlled atmosphere furnace | Smooth, clean, oxide-free surface | Electrical & electronic components |
| 3 | Mirror Polish Finish | Multi-stage mechanical polishing & buffing | High gloss, reflective surface | Decorative panels & nameplates |
| 4 | Brushed Finish | Abrasive belt brushing in one direction | Satin linear texture | Architectural cladding |
| 5 | Matte Finish | Light surface dulling treatment | Non reflective smooth surface | Industrial fabrication |
| 6 | Pickled Finish | Acid cleaning to remove scale & oxides | Clean uniform finish | Base material for further processing |
| 7 | Sandblasted Finish | Abrasive blasting under pressure | Rough textured matte surface | Decorative & anti slip uses |
| 8 | Patina Finish | Controlled chemical oxidation | Aged brown or green appearance | Heritage & artistic projects |
| 9 | Lacquer Coated Finish | Transparent protective coating applied | Glossy protected surface | Export & corrosion protection |
| 10 | Electroplated Finish | Surface plated with nickel, tin, silver or chrome | Metallic coated layer | Electrical connectors |
| 11 | Powder Coated Finish | Electrostatic powder coating cured in oven | Durable colored surface | Industrial panels |
| 12 | PVC Coated Finish | Protective PVC film applied | Scratch resistant temporary protection | Fabrication supply |
| Industry | Application | Common Grades Used | Reason for Selection |
|---|---|---|---|
| Electrical & Power | Busbars, switchgear panels, transformer parts | C101, C110 | High electrical conductivity approx 100 IACS |
| Electronics | PCB laminates, connectors, terminals | C101, C110, C14500 | Excellent conductivity & machinability |
| Heat Exchanger | Condenser plates, cooling panels | C122, C715 | Good thermal conductivity & corrosion resistance |
| Marine Industry | Shipbuilding plates, seawater components | C715 | Excellent resistance to seawater corrosion |
| Automotive | Radiator fins, electrical contacts | C110, C18150 | Conductivity & strength |
| Architecture & Construction | Roofing sheets, cladding panels | C122, C220 | Corrosion resistance & aesthetic finish |
| Decorative Industry | Wall panels, art sheets, name plates | C110, C260 | Good polishability |
| Industrial Machinery | Wear plates, heavy duty components | C18150 | High strength after heat treatment |
| Plumbing | Water tanks, piping sheets | C122 | Good weldability & hydrogen resistance |
| Defence & Aerospace | Electrical systems, precision parts | C101, C18150 | Reliability & high conductivity |
| HVAC Industry | Cooling fins, heat transfer panels | C110, C122 | High thermal performance |
| Manufacturing & Fabrication | Gaskets, fabricated panels | C260, C360 | Easy forming & machining |
Packaging is a major part of every delivery, and we understand it very well. We supply many types of metals and other industrial metal products to make sure they reach our customers safely. We know products face many types of problems, such as vibration, moisture and rough handling therefore we follow a careful and organised packaging process. Our goal is simple: we deliver every product in the same strong and perfect condition as when it leaves our facility.
We check every order before packing it. The size, straightness, surface quality, grade, and quantity of each rod and bar are checked. We ensure that the material is correct as per the customer request. Once inspected, we sort the products by their size and grade of material. This will ensure that we maintain the order in everything and prevent errors in dispatch. Bundling and loading are also simpler and quicker.
After these steps, make sure to arrange the products in proper alignment so that they are straight and balanced. Then they are strapped down with industrial grade strapping. These straps keep the bundle secure during lifting and transportation. We include additional support to shorten bending or movement in longer rods. We also ensure that the straps do not tear the edges or the surface of the material. This cautious wrapping ensures the merchandise is secure throughout the delivery and transportation.
Sometimes metal can be damaged by moisture and changing weather conditions. We apply protective methods based on the shipment type and destination. We may use anti-rust coatings, moisture-resistant wrapping, or protective covers to prevent them. Our additional cover against humidity and corrosion is given to export shipments and coastal deliveries. These will assist us to retain the shine, surface finish and integrity of our metal products in the long-distance transportation.
In case of large orders and/or shipments to the export market, we offer extra protection. We pack them on heavy pallets or stuff them into tough wooden structures that can be transported all over the world. The packaging is dependent on the size and weight of the shipment. We ensure that the packing is able to withstand packing pressure and movement of containers. This strong outer coating secures the materials throughout their long trips, port services and storage in warehousing.
We have proper lifting equipment such as forklifts and cranes to load materials. Our team places the bundles carefully inside trucks or containers. We place them in such a manner that they do not roll or shift during the transportation. We balance the weight to minimise the weight on any section of the shipment. Our safe loading methods give us the chance to reduce the chances of being damaged in transit, whether it is along the road or the sea.
Ganga R Ispat Metals distributes its products in India and also in overseas markets. We provide transportation with trusted logistics vendors. In the case of domestic deliveries, we organise road transportation. In export orders, we meet the international shipping standards and container loading requirements. Each shipment will be planned based on the delivery schedules to make it arrive on time. Our well organized transport system assists us in delivering products in an efficient and safe way.
We make ready all papers preceding dispatch. These documents can be invoices, packing lists, and required certificates. Proper documentation assists in easy transportation and reduced time in clearance of customs when making export shipments. We have good records to promote transparency and professional service.
A well-structured packaging and transportation process directly impacts product performance upon delivery. Our approach ensures:
We believe that packaging is not just about wrapping materials — it is about protecting the value and reliability of the product until it reaches the client.
In Ganga R Ispat Metals, we suppose that safe packaging and transportation ensure the value of our products. To avoid bending, scratches, and corrosion, we make every effort to avoid transit damage. We consider packaging as our quality responsibility. We have a standard process; however, our packing techniques are changed according to the product size, order quantity, and destination.
We ensure that all the rods and bars are sold to our customers in a powerful, secure and working condition. We offer secure packaging or assured transportation as an additional service.
Electrical, roofing, plumbing, industrial and decorative applications of copper sheets are made. They are treasured in terms of conductivity, durability and resistance to corrosion.
Copper sheets do not get corroded and have natural resistance to corrosion; they develop a protective patina. This renders them applicable in the outdoor and industrial settings.
Electrical systems have realized a wide application of copper sheets because of their high conductivity. They are typically applied in busbars, panels, and systems grounding.
Copper sheets are recommended for roofs and roof sheets are among the best roofing material options. They provide durability, resistance and a natural finish that is very attractive.
